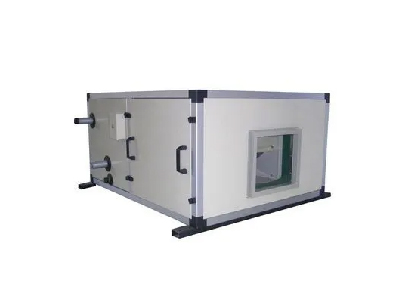

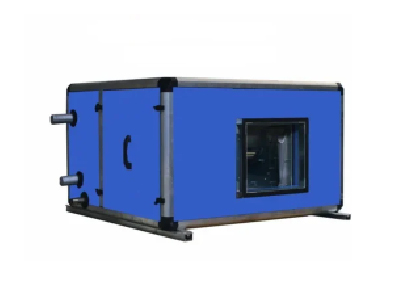

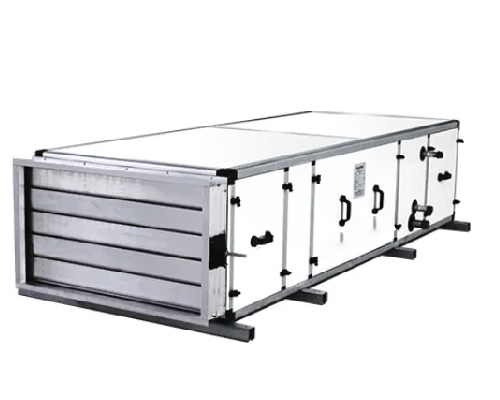

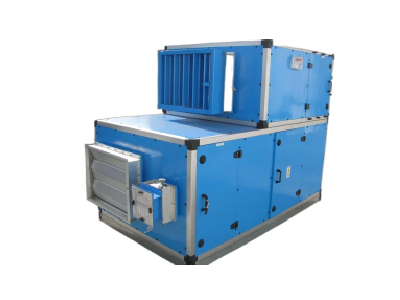

Air Handling Unit

The Air Handling Unit is available in single or double skin construction with 25mm and 45mm thick panels. It features imported copper tube coils for superior heat transfer and is compatible with chilled water, DX, hot water, or steam configurations in 2 to 8 row depths. A robust 1.4 mm thick G.I. base frame with lifting holes supports both motors and blowers on a common platform. AMCA-certified KRUGER or NICOTRA centrifugal fans ensure efficient airflow, while multi-slope drain pans in SS-304, aluminium, or G.I. guarantee effective condensate removal. Optional mixing chambers and motors from ABB, Siemens, Kirloskar, or Marathon complete this high-performance, customizable unit.
